Open-top comfort
A spacious vertical-rotation chamber gives cats an open sightline and a familiar entry experience, while the front step helps control tracked litter.
DZ05-II PRO · Fifth-generation smart litter boxOEM · Private label · Export coordination
5th generationAutomatic cat litter box
DZ05-II PRO Open-Top Smart Self-Cleaning Cat Litter Box
Fifth-generation app-controlled litter box with coordinated infrared, radar, touch and weight sensing, a 12 L waste drawer and private-label support.
- Coordinated safety system12 sensing points plus motor-stall and anti-tip protection.

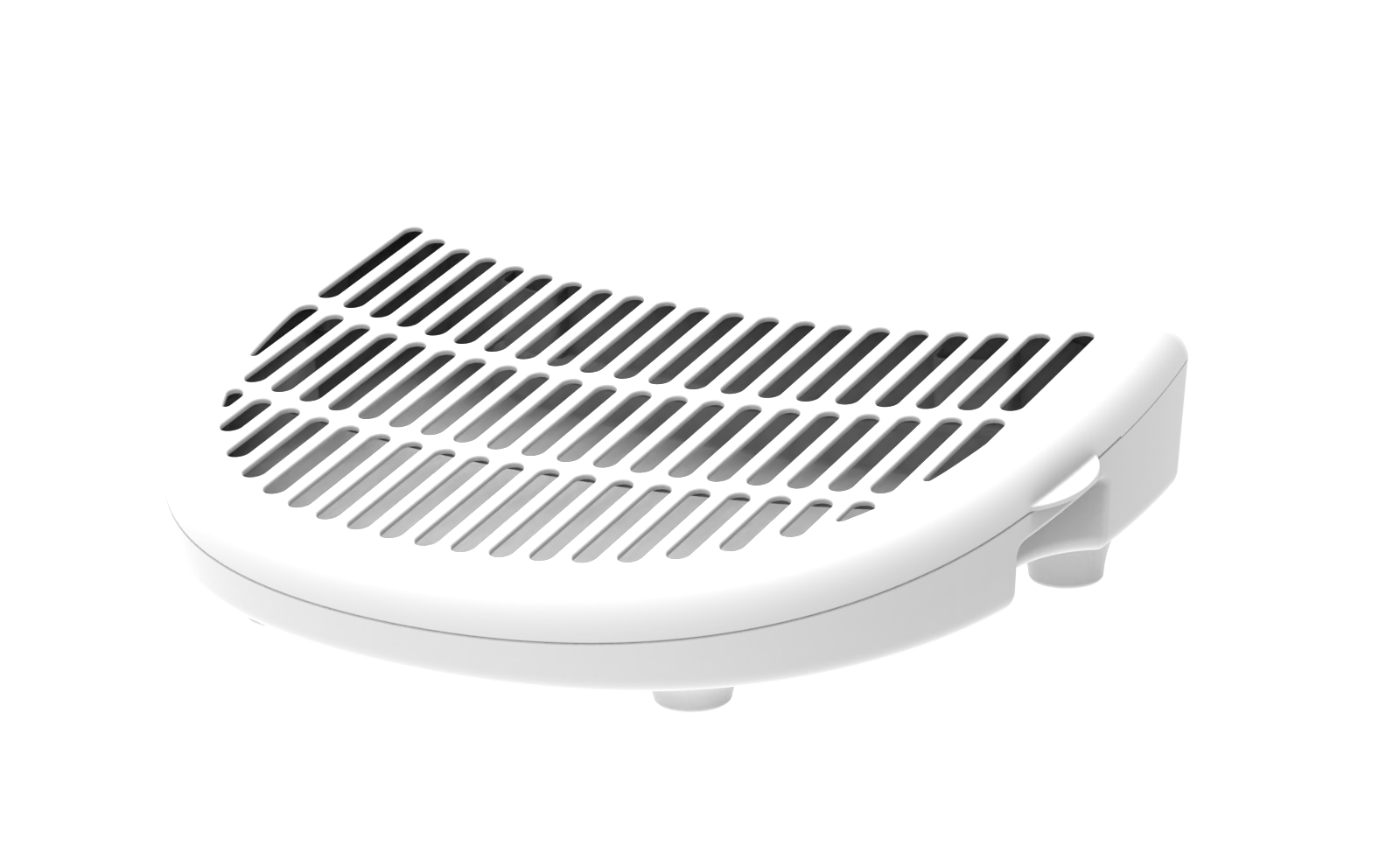

- Cat-friendly open designOpen sightline, removable front step and support for cats up to 12.5 kg.
- Automated waste management12 L drawer, full-bin reminder and replaceable waterproof liner.
- Smart app controlRemote cleaning, scheduling, hygiene cycles and usage records on Android and iOS.
Product proposition
A premium daily routine, without a closed capsule.
DZ05-II PRO combines the reassuring access of an open litter tray with automated separation, app-based care records and a layered sensor system. Its detachable structure and replaceable three-proof liner simplify cleaning and after-sales service.
Core system
Four layers of product value.
12-point sensing
Two touch sensors, two external radar sensors, four internal infrared sensors and four weight-sensing points coordinate protection around every cycle.
Hygiene workflow
The 12 L waste drawer supports UVC and negative-ion modules, full-bin reminders and a reserved deodorizing-gel position.
App-ready operation
Remote control, scheduled cleaning, scheduled hygiene cycles, do-not-disturb mode, delayed auto-cleaning and pet-use records are supported.
Coordinated protection
Safety around every movement.
The sensing architecture monitors the litter chamber, approach area and product weight. Motor-stall and anti-tip protection add another layer to the operating logic.
4×Internal infrared sensors
4×Weight-sensing points
2×External radar sensors
2×Touch sensors
IRRadarWeightTouchTechnical data
Product specifications.
Factory-sheet reference data for initial product evaluation.
ModelDZ05-II PRO
Product size665 × 520 × 545 mm
Rotating chamber500 × 470 × 360 mm
Waste drawer12 L
Recommended cat weightUp to 12.5 kg
Compatible litterGranules up to Ø1.5 mm and 8 mm length
Noise40–50 dB during cleaning; silent in standby
Net / gross weight12.2 kg / 16 kg
Power cord1.5 m
App availabilityAndroid & iOS
Specifications, modules, app functions, certifications, packaging and lead times are confirmed against the final private-label configuration and destination market.
B2B product inquiry
Tell us how you want to bring DZ05-II PRO to market.
Share your destination market, expected quantity and localization needs. We will coordinate the suitable factory configuration, sample, packaging and inspection plan.
- Logo, color and package localization
- Manual and app configuration support
- Market-specific compliance coordination
- Production inspection and global delivery
